900um Buffered Tube LC/APC 1550nm Fiber Optical Pigtail

Shenzhen Haiyu Optics Communication Equipment Co., Ltd.
Contact Now

900um Buffered Tube LC/APC 1550nm Fiber Optical Pigtail

Place of Origin : Guangdong, China

Brand Name : HYG

Model Number : HYG-LC-Pigtail-0.9mm

Certification : CE,Rohs;ISO

Supply Ability : 100000 Piece/Pieces per Day

Packaging Details : International standard package

MOQ : 10 Piece/Pieces

Price : $0.50 - $5.00 / Piece

Color : White

Connector type : LC

Jacket material : PVC;LSZH

Operating Wavelength : 1310/1550nm

Insertion loss : <=0.2dB

Cable diameter : 0.9mm

Delivery time : 3-5 days for MOQ

Application : FTTH;LAN etc

Cable length : 1/3/5/10m or customized

Port : Shenzhen

Contact Now

CE ROHS Certificate 900um Buffered Tube LC/APC Fiber Optical Pigtail Single Mode Fiber Patch Cables



Features

1.High repeatability & credibility
2.Competitive price
3.Fast delivery time
4.Low insertion loss







Fiber patch cord information



TEM

TEST conditions

Single mode

Multi mode

Optical properties

Insertion loss

UPC

1.31um,LED

<=0.3dB

<= 0.3dB

APC

1.31um,LED

<= 0.3dB

<= 0.3dB

Return loss

UPC

1.31um,LED

>=50dB

>=35dB

APC

1.31um,LED

>=60dB



Mechanical properties

Impact test

HIGH:1.8   8 TIMES

<0.1dB

<0.1dB

Vibration experiment

5-50HZ,1mm Full amplitude

<0.1dB

<0.1dB

Plug life

More than 1000 times

<0.1dB

<0.1dB

tensile strength

>100N,

<0.1dB

<0.1dB

Environment characteristics

Temperature Cycling Test

-25°C~+70°C,5 circle

<0.2dB

<0.2dB

high-temperature test

+80°C,100 hours

<0.2dB

<0.2dB

Low-temperature test

-40°C,100 hours

<0.2dB

<0.2dB

Damp and hot test

+25°C~+65°C,Relative humidity 93%,100 hours

<0.2dB

<0.2d




Applications


-CATV
-Telecommunication networks
-Gigabit Ethernet
-Active device interface
-Optical switch inter-frame connection
-Other applications in fiberoptic systems



Order informations

HYG-ST/ PC – ST/ PC/ SM/ 2C/ 3.0 – 1M

          1     2      1     2     3      4     5        6

1 Connector types:  FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

2 Ferrule End-face: PC, APC

3 Fiber Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

4 Cable Quantity: “2C” means duplex,C means simple

5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm

6 Length:1, 2, 3 meter or customized length

7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

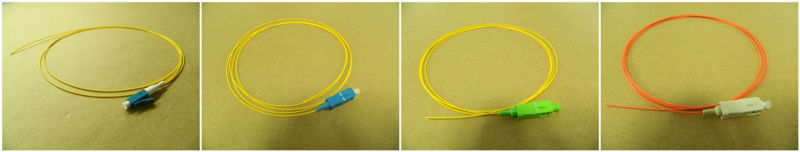

The Picture of  900um buffered tube pigtail



 900um Buffered Tube LC/APC 1550nm Fiber Optical Pigtail900um Buffered Tube LC/APC 1550nm Fiber Optical Pigtail





900um Buffered Tube LC/APC 1550nm Fiber Optical Pigtail

About Our Company

900um Buffered Tube LC/APC 1550nm Fiber Optical Pigtail900um Buffered Tube LC/APC 1550nm Fiber Optical Pigtail



After-Sales Service

900um Buffered Tube LC/APC 1550nm Fiber Optical Pigtail



OEM & ODM is accepted, any questions welcome to contact us.



Sales Manager: Joyce Tan



Phone: 86 13066935405

Tel: 86 755 29467029

Email: hyglink[a]hyglink.com

Skype: joycetan75

Weichat: tan_aihua
