1x2 Multimode Fiber Optic Splitter High Performance 1 In 2 Out Type

Name: 1x2 Multimode Fiber Optic Splitter High Performance 1 In 2 Out Type
Brand: Haiyu Optical
Price: 1 USD

Buy cheap 1x2 Multimode Fiber Optic Splitter High Performance 1 In 2 Out Type product

Brand Name : Haiyu Optical

Model Number : HYG-SPL-1*2-FBT

Certification : CE, ISO9001, Rohs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, L/C

Supply Ability : 1000pcs per day

Delivery Time : 2-3 working days

Packaging Details : each packed into a inner box, 100-200pcs/carton

Product name : Optical Splitter 1 In 2 Out

Capacity : 1x2

Connector : ST, LC, FC, ST avaliable

Wavelength : 1260~1650nm

Operating temperature : -40 to +85 degree

Warranty : 1 years

Fiber type : Multimode 50/125um

Application : FTTH FTTB FTTX Network

Type : FBT Optical Couplers

Fiber length : 1m or customized

Contact Now

1x2 Multimode Optical Splitter 1 In 2 Out FBT Optical Couplers

Product Description:

We produces high performance FBT type optical couplers / splitters. They provide a reliable solution to split / combine signals, and are widely used in telecommunications, CATV, test equipment and etc. Our products are trusted by well-known domestic and overseas telecommunication operators and system suppliers.

Specification:

Type	1x2	1x3	1x4	1x5	1x6	1x8
Fiber Type	SM fiber (G652D, G657A)
Operation Wavelength	1310±20/1550±20nm
Insertion Loss (dB)(Max)	<3.6	<5.6	<7.2	<8.2	<9.5	<10.7
Uniformity (dB)(Max)	<0.5	<0.6	<0.8	<1.2	<1.5	<1.7
Polarization Dependent Loss (dB)(Max)	<0.2	<0.2	<0.2	<0.3	<0.3	<0.30
Directivity (dB)(Min)	≥55
Return Loss (dB)(Min)	≥55
Operating Temperature ( ℃)	-10 to +70
Storage Temperature ( ℃)	-40 to +85

Values are under: Dual window; Even coupling ratio; 1 input port; without connectors

Features:

Low insertion
High return loss
Low crosstalk & excess loss
Low PDL
Eenvironmentally stable and reliable
Compliant with Telcordia GR-1209/1221-Core
High reliability and stability
SC LC FC ST Connectors Avaliable

Applications:

FTTx (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV system
Test equipment
EDFA / module

Packaging Information:

SS Tube (mm)	ABS Box (mm)			LGX (mm)
Φ3x54	90x20x10	100x80x10	140x115x18	140x115x18
A	B	C	D	F

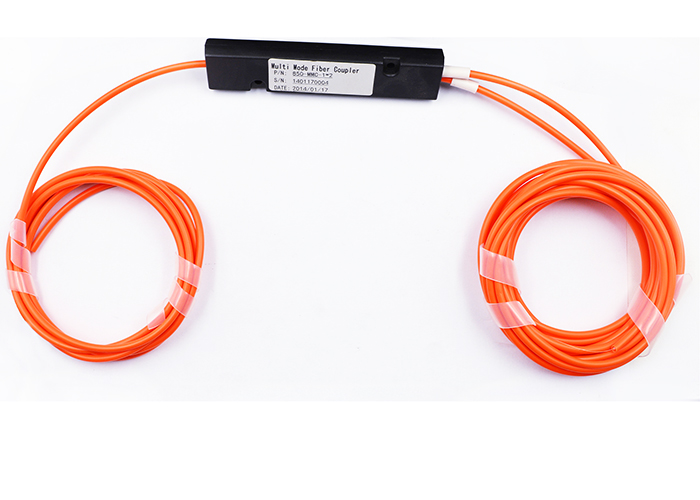

1x2 Multimode Fiber Optic Splitter High Performance 1 In 2 Out Type
