24 Cores Single Mode Fiber Patch Cord 55dB Return Loss Customized Length

Shenzhen Haiyu Optics Communication Equipment Co., Ltd.
Contact Now

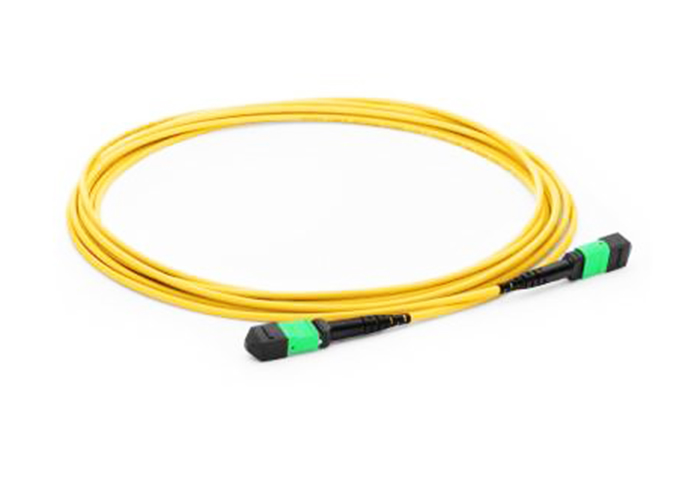

24 Cores Single Mode Fiber Patch Cord 55dB Return Loss Customized Length

  • 1
  • 2
  • 3

Brand Name : Haiyuoptical

Model Number : HYG-MPO-SM-24F-1M

Certification : Rohs,CE, ISO

Place of Origin : Guangdong, China (Mainland)

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000pcs per day

Delivery Time : 2-3 working days

Packaging Details : polybag+carton or customized

Connector : MPO

Fiber count : 24 cores

Fiber type : 9 / 125 SM

Color : YELLOW

Insertion loss : ≤0.35 dB

Return loss : >= 55dB

Length : 1m, 2m,5m,10m or custom

Application : FTTH Fiber Network,Telecommunication

Contact Now

24 Fibre MPO APC to MPO APC Singlemode Fiber Optic Patch Cord Supplier





Specification:



Parameters Min. Typical Max. Unit.
Operating Wavelength Single Mode 1310   1620 nm
  Multi-mode 850   1310
MPO Insertion Loss Single Mode     0.6 dB
  Single Mode Low Loss   0.3 0.35
  Multi-mode     0.75

Single Fiber Insertion Loss

(Fan-out side)

Single Mode     0.2 dB
  Single Mode Low Loss     0.3
  Multi-mode     0.3
Return Loss Single Mode 50     dB
  Single Mode Low Loss 60
  Multi-mode 30
Operating Temperature - 20   + 70 °C


Description:

MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.



Features:

  • Improves and simplifies fiber routing
  • Decreases fiber management space
  • OEM or customized for special applications
  • Low insertion loss and reflectance
  • High Density
  • Snap-In cassette panel for easy installation, removal and expansion



Applications:

  • Optical fiber communications systems;
  • Optical fiber access network;
  • Optical fiber CATV.
  • Optical fiber test equipments;
  • Optical fiber data communications;
  • LAN



24 Cores Single Mode Fiber Patch Cord 55dB Return Loss Customized Length



Bare Fiber Color



No. 4 Ribbon Fiber No. 8 Ribbon Fiber No. 12 Ribbon Fiber
1 Blue 1 Blue 1 Blue
2 Orange 2 Orange 2 Orange
3 Green 3 Green 3 Green
4 Brown 4 Brown 4 Brown
    5 Gray 5 Gray
    6 White 6 White
    7 Red 7 Red
    8 Black 8 Black
        9 Yellow
        10 Violet
        11 Pink
        12 Aqua
