Laser Visual Fault Locator Fiber Optic Test Pen For FTTH

Place of Origin : Guangdong, China

Brand Name : HYG

Model Number : VFL-3

Certification : CE RoHS FCC

Supply Ability : 10000000 Piece/Pieces per Month

Packaging Details : carton box

MOQ : 1 Piece/Pieces

Price : $12.50 - $35.00 / Piece

Type : Testers &Tools

No. of Fiber : 1.

Use : FTTH

Product name : Visual Fault Locator

Application : FTTH FTTB FTTX Network

Color : Black

Warranty : 1 Year

Dimensions : 180*15*15mm

Power supply : 5V1A

Ports : 1 Port

Connector Type : SC FC LC ST

Operating temperature : -40~75

Port : shenzhen

Contact Now

Optical Laser Visual Fault Locator Detector Tester Test Pen fiber-optic test pen



Specification:

1mw 10mw Pen-type Visual Fault Locator  is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR

Key Feature
2.5mm universal connector
Operates either in CW or Pulsed
Constant output power
Lower Battery warning
Long battery life (up to 60 hours)

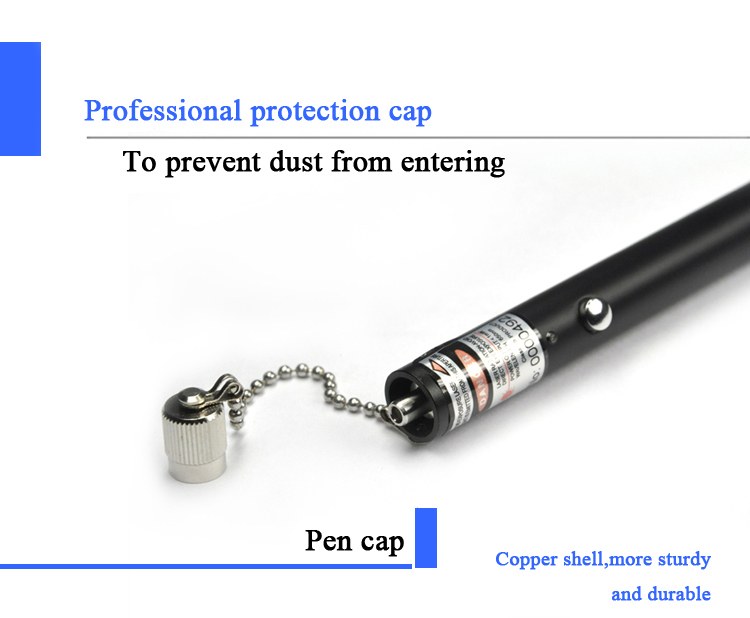

Crash-proof and dust-proof design for laser head
Laser case ground design  prevents ESD damage
Burning testing to ensure the reliability.
Portable and rugged, easy to use
Guarantee to CE standards include EMC, EMI, ROHS





Specification

Type

JW3105 Pen-type Visual Fault Locator

Central Wavelength

650nm±10nm (635nm can be required on request)

Emitter Type

FP-LD

Output Power

Optional choice for 1mw, 10mw on actual needs

Optical Connector

2.5mm universal connector

For 1.25mm connectors, FC (Male)-LC (Female) convertor

can be optional on customer requests

Operating Model

Both CW and Pulse available

Pulse Frequency

2~3Hz

Power Supply

2  AA alkaline batteries

Battery Operating Time

650nm@1mw ≥65hour

650nm@10mw≥15hour

Test with Panasonic LR6 AA ALKALINE battery

Operating Temperature

-10~+45 (°C)

Storage Temperature

-40~+70 (°C)

Dimension (mm)

 15X180

Weight

120g(Without battery)

 Laser Visual Fault Locator Fiber Optic Test Pen For FTTHLaser Visual Fault Locator Fiber Optic Test Pen For FTTHLaser Visual Fault Locator Fiber Optic Test Pen For FTTHLaser Visual Fault Locator Fiber Optic Test Pen For FTTHLaser Visual Fault Locator Fiber Optic Test Pen For FTTHLaser Visual Fault Locator Fiber Optic Test Pen For FTTH
